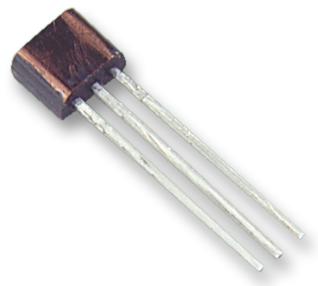

ZTX653 Transistor, NPN, E-Line Diodes Inc.

DIODES INC.SKU:ZTX653 Bestelcode:9525580

Prijs:
Actie prijs€2,39

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (7398 units)

Documenten en downloads

Omschrijving

DIODES INC. - ZTX653 - Bipolar (BJT) Single Transistor, General Purpose, NPN, 100 V, 2 A, 1 W, E-Line, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 100V
  • Transition Frequency ft: 175MHz
  • Power Dissipation Pd: 1W
  • DC Collector Current: 2A
  • DC Current Gain hFE: 100hFE
  • Transistor Case Style: E-Line
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 500mV
  • Continuous Collector Current Ic Max: 2A
  • Current Ic @ Vce Sat: 2A
  • Current Ic Continuous a Max: 2A
  • Current Ic hFE: 500mA
  • Gain Bandwidth ft Min: 140MHz
  • Gain Bandwidth ft Typ: 175MHz
  • Hfe Min: 100
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Pin Configuration: e
  • Power Dissipation Ptot Max: 1W
  • Voltage Vcbo: 120V
