Omschrijving

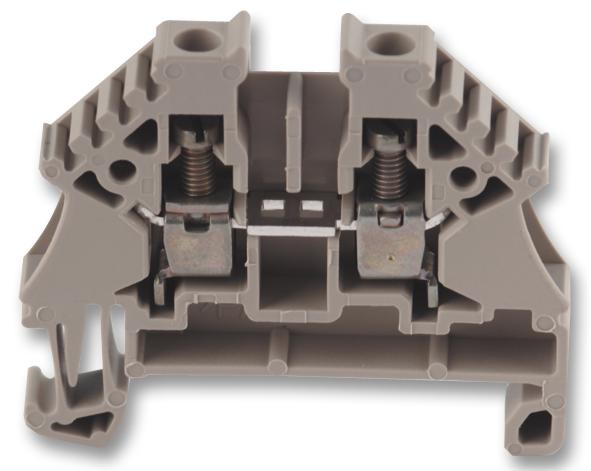

WEIDMULLER - WDU 35N - DIN Rail Mount Terminal Block, 2 Ways, 12 AWG, 1 AWG, 35 mm², Screw, 150 A
- No. of Positions: 2Ways
- Wire Size AWG Min: 12AWG
- Wire Size AWG Max: 1AWG
- Conductor Area CSA: 35mm²
- Wire Connection Method: Screw
- Rated Current: 150A
- Rated Voltage: 300V
- No. of Levels: 1
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Colour: Beige
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- External Depth: 66mm
- External Length / Height: 51mm
- External Width: 16mm
- Flexible Wire Area Size Max: 35mm²
- Pitch Spacing: 16mm
- Voltage Rating VAC: 500V
- Wire Area Size Max: 50mm²
- Wire Area Size Min: 2.5mm²
