Omschrijving

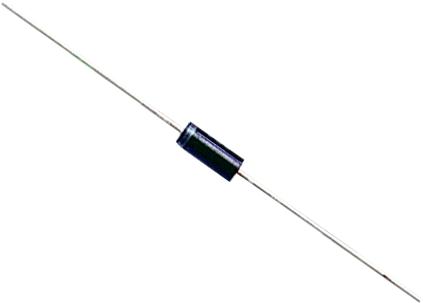

ONSEMI - UF4006 - Fast / Ultrafast Diode, 800 V, 1 A, Single, 1.7 V, 75 ns, 30 A
- Repetitive Reverse Voltage Vrrm Max: 800V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.7V
- Reverse Recovery Time trr Max: 75ns
- Forward Surge Current Ifsm Max: 30A
- Operating Temperature Max: 150°C
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2 Pin
- Product Range: UF400 Series
- Automotive Qualification Standard: -
- SVHC: Lead (27-Jun-2018)
- Capacitance Cd @ Vr Typ: 17pF
- Current Ifsm: 30A
- Diode Type: Fast Recovery
- Junction Temperature Tj Max: +150°C
- No. of Pins: 2Pins
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Reverse Recovery Time trr Typ: 75ns
- Termination Type: Axial Leaded
- Time Measured: 75ns
