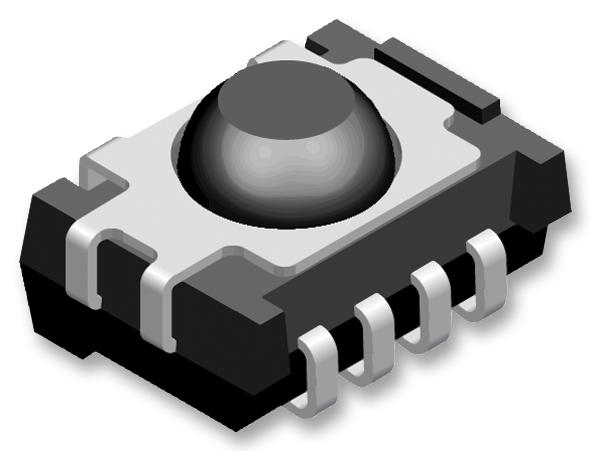

VISHAY - TSOP6438TR - Infrared Receiver, Remote Control, 38 kHz, Top or Side View Surface Mount, NEC, Sharp, 40m, AGC4
- Carrier Frequency: 38kHz
- IR Receiver Mounting Style: Top or Side View Surface Mount
- Remote Control Code: NEC, Sharp
- Transmission Range: 40m
- Automatic Gain Control (AGC) Type: AGC4
- Detection Threshold / Sensitivity: 0.2mW/m²
- Directivity: 50°
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 2.5V
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Supply Current: 700µA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Operating Temperature Range: -25°C to +85°C
- Supply Voltage Range: 2.5V to 5.5V
