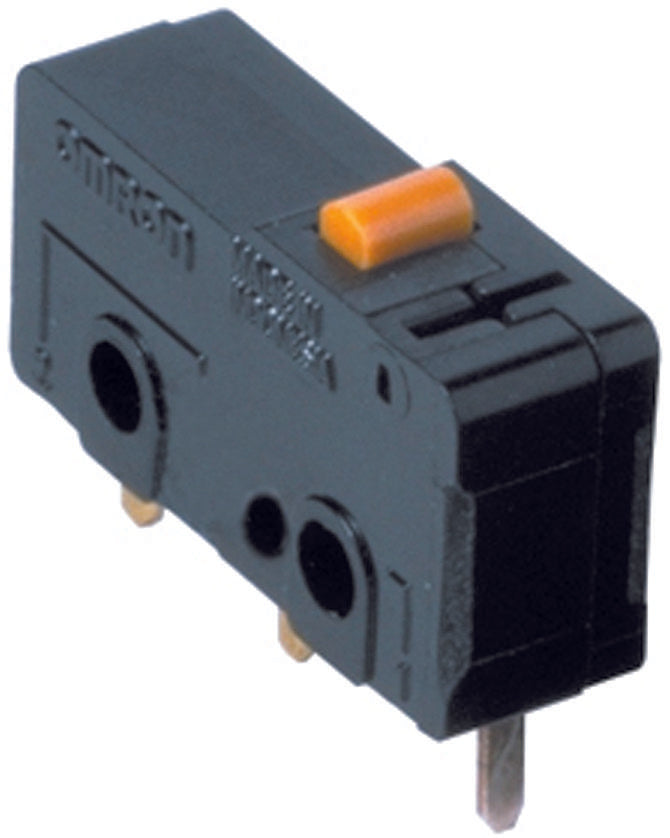

OMRON - SS-01GL - Microswitch, Snap Action, Lever, SPDT, Solder, 100 mA, 250 VDC
- Microswitch Type: Snap Action
- Microswitch Actuator: Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 100mA
- Contact Voltage DC Nom: 250VDC
- Product Range: SS Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 0.49N
- Actuation Type: Lever
- Actuator Type: Hinge Lever
- Contact Current AC Max: 100mA
- Contact Current DC Max: 100mA
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 250V
- Operating Force: 0.49N
