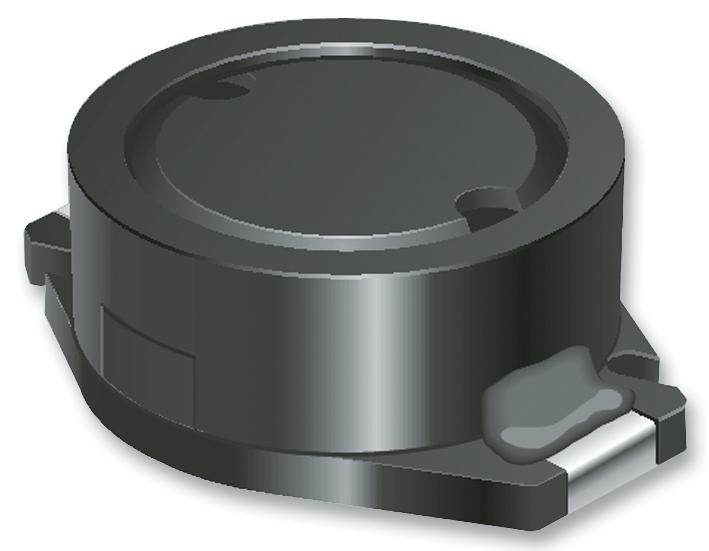

BOURNS - SRR0805-102K - Power Inductor (SMD), 1 mH, 150 mA, Shielded, 240 mA, SRR0805
- Inductance: 1mH
- RMS Current (Irms): 150mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 240mA
- Product Range: SRR0805 Series
- Power Inductor Case: 10.5mm x 8mm x 4.7mm
- DC Resistance Max: 5ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 35
- Q Test Frequency: 252kHz
- Self Resonant Frequency Min: 2.2MHz
