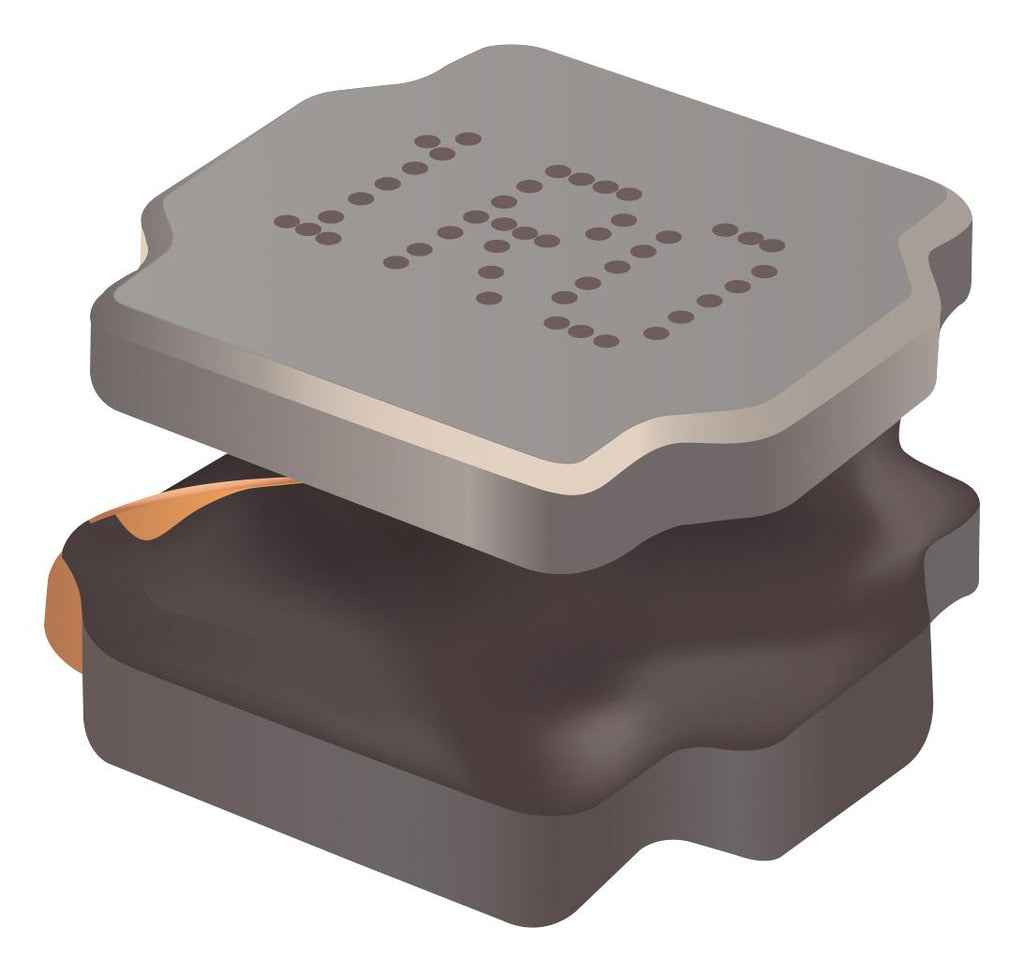

BOURNS - SRN6045TA-3R3Y - Power Inductor (SMD), AEC-Q200, 3.3 µH, 5 A, Semishielded, 7.8 A, SRN6045TA, 6mm x 6mm x 4.2mm
- Inductance: 3.3µH
- RMS Current (Irms): 5A
- Inductor Construction: Semishielded
- Saturation Current (Isat): 7.8A
- Product Range: SRN6045TA Series
- Power Inductor Case: 6mm x 6mm x 4.2mm
- DC Resistance Max: 0.021ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2018)
