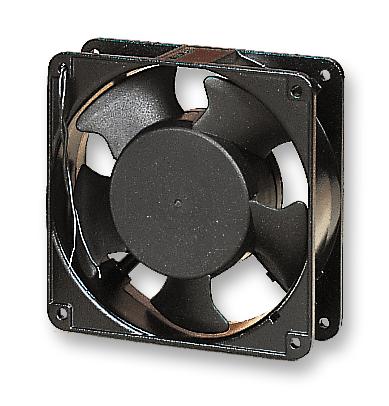

MULTICOMP - SP101A/1123HSL.GN - AC Axial Fan, 115V, Square, 119 mm, 38 mm, Sleeve Bearing, 105 CFM
- Supply Voltage: 115V
- Current Type: AC
- Fan Frame Size: 119mm
- External Depth: 38mm
- Noise Rating: 48dBA
- Flow Rate - Imperial: 105cu.ft/min
- Flow Rate - Metric: 2.97m³/min
- Bearing Type: Sleeve
- Power Connection Type: 2 Lead Wires
- Current Rating: 210mA
- Product Range: Slimline Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, TUV, UL
- External Diameter: 119mm
- External Height: 119mm
- External Width: 119mm
- Fixing Centres: 105mm
- Fixing Hole Diameter: 4.3mm
- Flammability Rating: UL94V-0
- Frame Dimensions: 119mm x 119mm x 38mm
- Lead Length: 300mm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Operating life Time: 30000h
- Panel Cutout Diameter: 116mm
- Power Consumption: 18W
- Speed Range Max: 2900rpm
- Type: Standard,119mm
