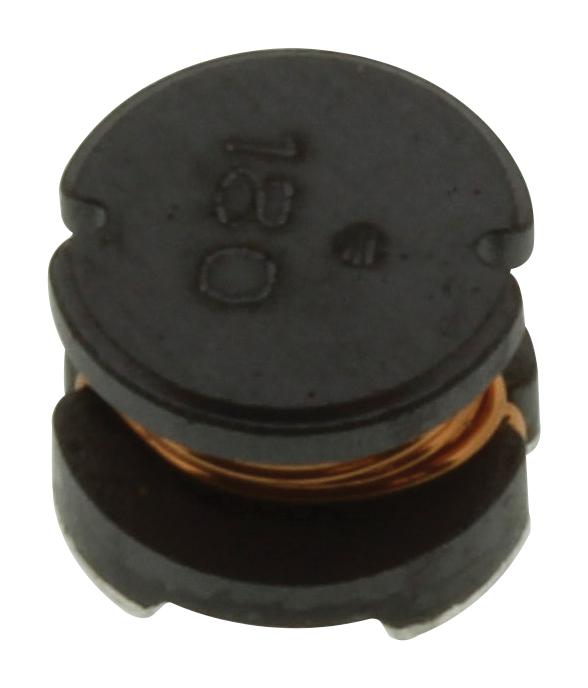

BOURNS - SDR0604-180YL - Power Inductor (SMD), 18 µH, 1.25 A, Unshielded, 1.5 A, SDR0604
- Inductance: 18µH
- RMS Current (Irms): 1.25A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.5A
- Product Range: SDR0604 Series
- Power Inductor Case: 5.8mm x 5.8mm x 4.8mm
- DC Resistance Max: 0.15ohm
- Inductance Tolerance: ± 15%
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 5.8mm
- External Length / Height: 4.8mm
- External Width: 5.8mm
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 30
- Q Test Frequency: 2.52MHz
- Resonant Frequency: 18MHz
- Self Resonant Frequency Min: 18MHz
- Test Frequency: 2.52MHz
