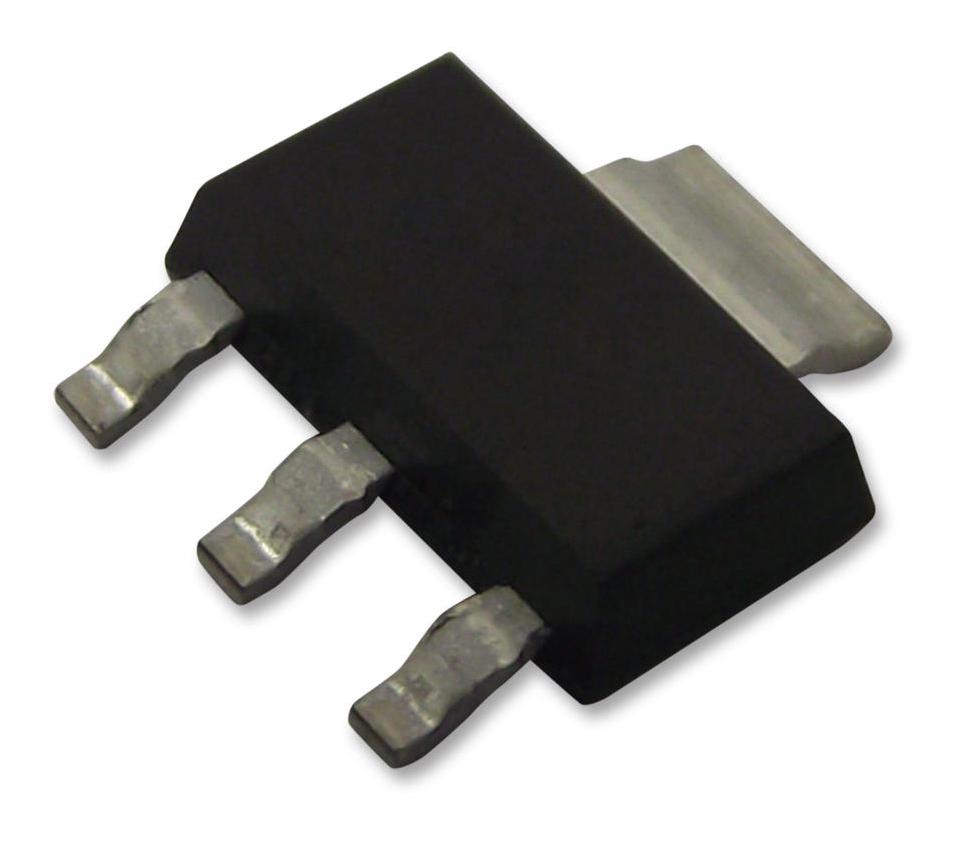

LITTELFUSE - S602TSRP - Thyristor, 600 V, 200 µA, 950 mA, 1.5 A, SOT-223, 3 Pins
- Peak Repetitive Off-State Voltage, Vdrm: 600V
- Gate Trigger Current Max, Igt: 200µA
- Current It av: 950mA
- On State RMS Current IT(rms): 1.5A
- Thyristor Case Style: SOT-223
- No. of Pins: 3Pins
- Peak Non Rep Surge Current Itsm 50Hz: 12.5A
- Holding Current Max Ih: 5mA
- Gate Trigger Voltage Max Vgt: 800mV
- Operating Temperature Max: 125°C
- Product Range: -
- MSL: -
- Current Itsm: 1.5A
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Thyristor Case: SOT-223
