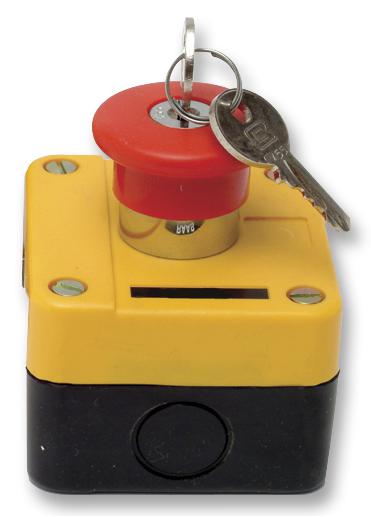

MULTICOMP PRO - RC1PYBS142 - Control Station, SPST-NC, CSA, UL, IP65, Thermoplastic
- Contact Configuration: SPST-NC
- No. of Positions: -
- Approvals / Standards: CSA, UL
- IP Rating: IP65
- Switch Case: Thermoplastic
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Contact Resistance: 25mohm
- Current Rating: 10A
- External Depth: 74mm
- External Diameter: 40mm
- External Length / Height: 51mm
- External Width: 68mm
- Handle Type: Key Release
- Insulation Resistance: 2Mohm
- Insulation Resistance Voltage: 500VDC
- Insulation Voltage: 500V
- Material: Plastic
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
