Omschrijving

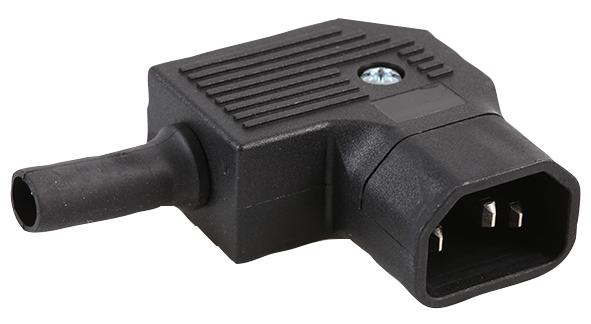

BULGIN LIMITED - PX0686/SE - IEC Power Connector, IEC C14 Plug, 10 A, 250 VAC, Screw, Cable Mount, PX0686
- Product Range: PX0686
- Gender: Plug
- Voltage Rating: 250VAC
- Current Rating: 10A
- Connector Mounting: Cable Mount
- Contact Termination Type: Screw
- SVHC: No SVHC (27-Jun-2018)
- Approval Category: CSA, IMQ, SEMKO, UL, VDE
- Cable Diameter Max: 7.6mm
- Contact Resistance: 10mohm
- Contact Termination: Screw
- External Depth: 51.7mm
- External Length / Height: 22.6mm
- External Width: 72.1mm
- Flammability Rating: UL94V-0
- Fuse Current: 10A
- Insulation Resistance: 10Mohm
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Termination Method: Screw
- Voltage Rating VAC: 250V
