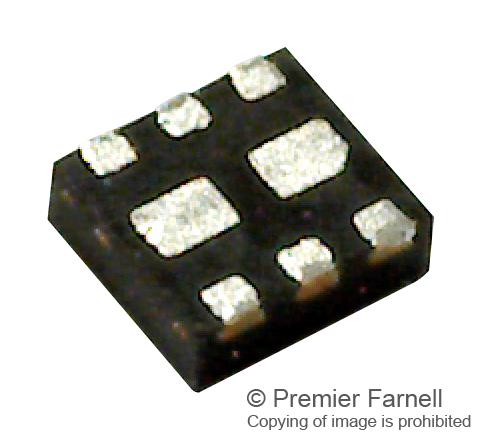

PMDXB600UNELZ MOSFET, Dual N-Ch, 20V, 0.6a, DFN1010B NEXPERIA

NEXPERIA - PMDXB600UNELZ - Dual MOSFET, N Channel, 20 V, 600 mA, 0.47 ohm, DFN1010B, Surface Mount

• Transistor Polarity: Dual N Channel
• Continuous Drain Current Id: 600mA
• Drain Source Voltage Vds: 20V
• On Resistance Rds(on): 0.47ohm
• Rds(on) Test Voltage Vgs: 4.5V
• Threshold Voltage Vgs: 700mV
• Power Dissipation Pd: 380mW
• Transistor Case Style: DFN1010B
• No. of Pins: 6Pins
• Operating Temperature Max: 150°C
• Product Range: Trench Series
• Automotive Qualification Standard: -
• MSL: MSL 1 - Unlimited
• SVHC: No SVHC (15-Jan-2018)
