Omschrijving

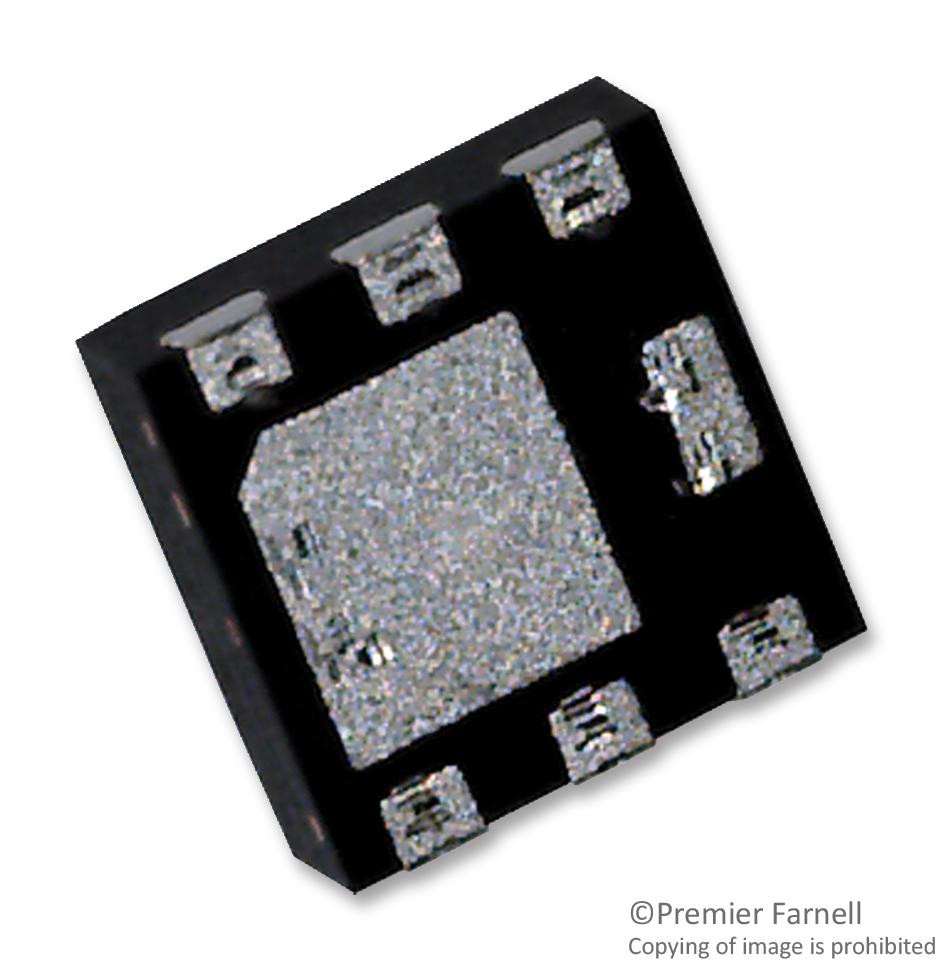

NEXPERIA - PMCPB5530X,115 - Dual MOSFET, Complementary N and P Channel, 20 V, 5.3 A, 0.026 ohm, SOT-1118, Surface Mount
- Transistor Polarity: N and P Channel
- Continuous Drain Current Id: 5.3A
- Drain Source Voltage Vds: 20V
- On Resistance Rds(on): 0.026ohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs: 650mV
- Power Dissipation Pd: 1.17W
- Transistor Case Style: SOT-1118
- No. of Pins: 8Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Operating Temperature Min: -55°C
