Omschrijving

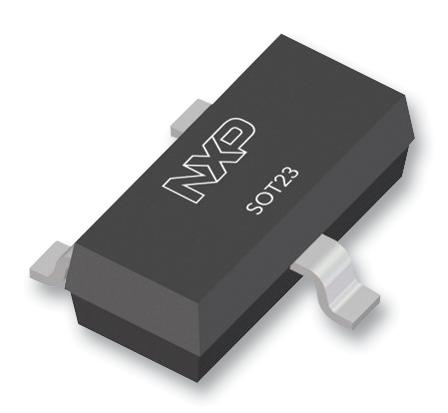

NEXPERIA - PMBTA42,215 - Bipolar (BJT) Single Transistor, General Purpose, NPN, 300 V, 100 mA, 250 mW, SOT-23, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 300V
- Transition Frequency ft: -
- Power Dissipation Pd: 250mW
- DC Collector Current: 100mA
- DC Current Gain hFE: 40hFE
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Current Ic @ Vce Sat: 20A
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 10mA
- Gain Bandwidth ft Typ: 50MHz
- Hfe Min: 40
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Peak Current Icm: 0.2A
- Power Dissipation Ptot Max: 250mW
- SMD Marking: 1D
- Termination Type: Surface Mount Device
