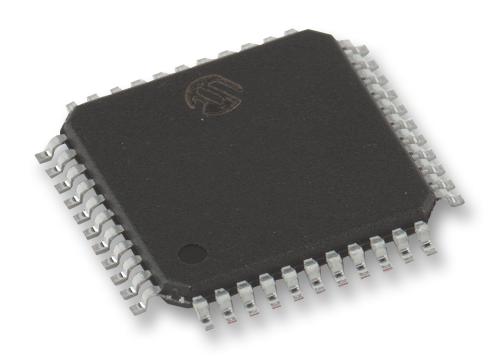

MICROCHIP - PIC18F4220-I/PT - 8 Bit MCU, Flash, PIC18 Family PIC18F42xx Series Microcontrollers, 40 MHz, 4 KB, 512 Byte, 44 Pins
- Product Range: PIC18 Family PIC18F42xx Series Microcontrollers
- CPU Speed: 40MHz
- Program Memory Size: 4KB
- RAM Memory Size: 512Byte
- No. of Pins: 44Pins
- MCU Case Style: TQFP
- No. of I/O's: 36I/O's
- Embedded Interface Type: AUSART, I2C, PSP, SPI
- Supply Voltage Min: 4.2V
- Supply Voltage Max: 5.5V
- MCU Family: PIC18
- MCU Series: PIC18F42xx
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC18F
- EEPROM Memory Size: 256Byte
- Flash Memory Size: 4KB
- IC Generic Number: 18F4220
- IC Temperature Range: Industrial
- Lead Spacing: 0.5mm
- Logic Function Number: 18F4220
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: ECCP module, 10-bit ADC, USART, Dual analog comparators, ICSP/ICD compatible
- No. of ADC Inputs: 13
- No. of Bits: 8bit
- No. of PWM Channels: 5
- No. of Timers: 4
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
