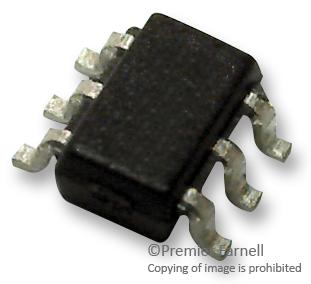

NEXPERIA - PESD5V0L5UY,115 - ESD Protection Device, TVS, 6.8 V, SOT-363, 6 Pins, 5 V, PESD5
- Clamping Voltage Vc Max: 6.8V
- Diode Case Style: SOT-363
- No. of Pins: 6Pins
- Operating Voltage: 5V
- Power Dissipation Pd: -
- Product Range: PESD5 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Breakdown Voltage: 6.8V
- Breakdown Voltage Max: 7.2V
- Breakdown Voltage Min: 6.4V
- Breakdown Voltage Range: 6.4V to 7.2V
- Breakover Voltage Min: 6.4V
- Capacitance Cd @ Vr Max: 19pF
- Capacitance Cd @ Vr Typ: 16pF
- Clamping Voltage @ 8/20µs Max: 12V
- Diode Type: Unidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Peak Pulse Current Ippm: 2.5A
- Peak Pulse Power Dissipation: 25W
- Pin Configuration: 4
- Reel Quantity: 5
- Reverse Stand-Off Voltage Vrwm: 5V
- SMD Marking: K4*
- Stand-off Voltage: 5V
- TVS Polarity: Unidirectional
