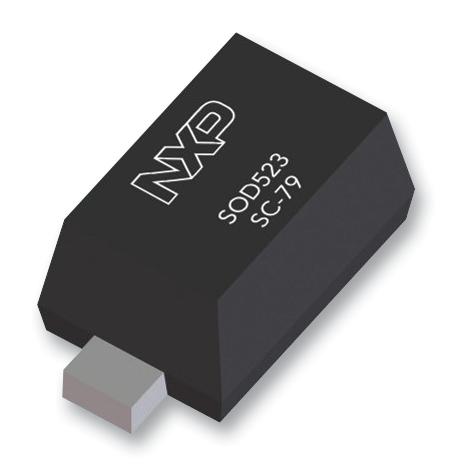

NEXPERIA - PESD3V3S1UB,115 - ESD Protection Device, TVS, 20 V, SOD-523, 2 Pins, 3.3 V, PESD3
- Clamping Voltage Vc Max: 20V
- Diode Case Style: SOD-523
- No. of Pins: 2Pins
- Operating Voltage: 3.3V
- Power Dissipation Pd: -
- Product Range: PESD3 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Breakdown Voltage: 5.6V
- Breakdown Voltage Max: 6V
- Breakdown Voltage Min: 5.2V
- Breakdown Voltage Range: 5.2V to 6V
- Breakover Voltage Min: 5.2V
- Capacitance Cd @ Vr Max: 300pF
- Capacitance Cd @ Vr Typ: 207pF
- Clamping Voltage @ 8/20µs Max: 20V
- Diode Type: Unidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Peak Pulse Current Ippm: 18A
- Peak Pulse Power Dissipation: 330W
- Reel Quantity: 1
- Reverse Stand-Off Voltage Vrwm: 3.3V
- SMD Marking: N1
- Stand-off Voltage: 3.3V
- TVS Polarity: Unidirectional
