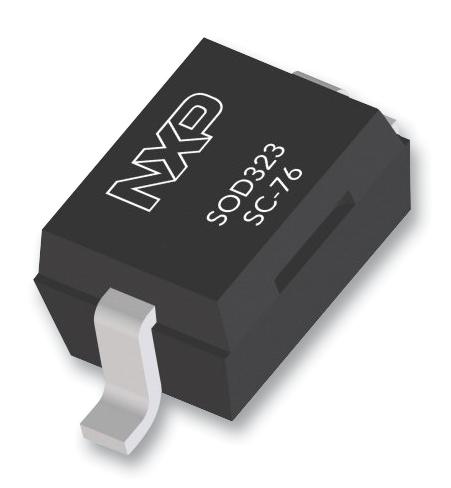

NEXPERIA - PESD12VL1BA,115 - ESD Protection Device, TVS, 15.9 V, SOD-323, 2 Pins, 12 V, PESD1
- Clamping Voltage Vc Max: 15.9V
- Diode Case Style: SOD-323
- No. of Pins: 2Pins
- Operating Voltage: 12V
- Power Dissipation Pd: -
- Product Range: PESD1 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Alternate Case Style: SC-76
- Breakdown Voltage: 15.9V
- Breakdown Voltage Max: 16.7V
- Breakdown Voltage Min: 14.2V
- Breakdown Voltage Range: 14.2V to 16.7V
- Breakover Voltage Min: 14.2V
- Capacitance Cd @ Vr Max: 13pF
- Capacitance Cd @ Vr Typ: 19pF
- Clamping Voltage @ 8/20µs Max: 37V
- Diode Type: Bidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Peak Pulse Current Ippm: 5A
- Peak Pulse Power Dissipation: 200W
- Pin Configuration: 1
- Reverse Stand-Off Voltage Vrwm: 12V
- SMD Marking: AD
- Stand-off Voltage: 12V
- TVS Polarity: Bidirectional
