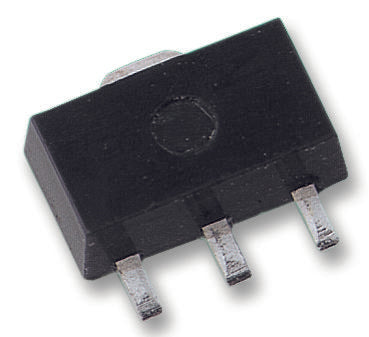

PBSS4350X,115 Transistor, NPN, Sot-89 NEXPERIA

NEXPERIASKU:PBSS4350X,115 Bestelcode:8736332

Prijs:
Actie prijs€0,76

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (361 units)

Documenten en downloads

Omschrijving

NEXPERIA - PBSS4350X,115 - Bipolar (BJT) Single Transistor, NPN, 50 V, 3 A, 550 mW, SOT-89, Surface Mount

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 50V
  • Transition Frequency ft: -
  • Power Dissipation Pd: 550mW
  • DC Collector Current: 3A
  • DC Current Gain hFE: 300hFE
  • Transistor Case Style: SOT-89
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 80V
  • Continuous Collector Current Ic Max: 3A
  • Current Ic @ Vce Sat: 500A
  • Current Ic Continuous a Max: 3A
  • Current Ic hFE: 500µA
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Typ: 100MHz
  • Hfe Min: 300
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Ptot Max: 1.3W
  • Voltage Vcbo: 50V
