Omschrijving

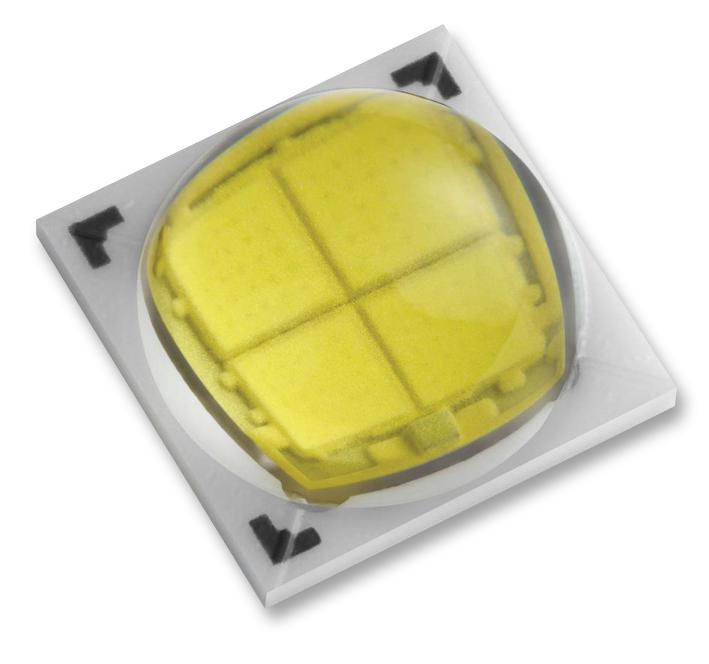

LUMILEDS - LXR8-SW40 - LED, Neutral White, 80 CRI Rating, 905 lm, 700 mA, 120 °, 4000 K, 2828 Package, Dome
- COB Colour: Neutral White
- Color Rendering Index Max: 80
- Power Rating: -
- Luminous Flux @ Test: 905lm
- Forward Current @ Test: 700mA
- Viewing Angle: 120°
- Forward Voltage VF Typ: 12V
- Nominal CCT (K): 4000 K
- COB Length: 7mm
- COB Width: 7mm
- Opto Case Style: 2828
- Lumens / Watt @ Current Test: -
- Light Emitting Surface: -
- Lens Type: -
- Lens Shape: Dome
- Height: 3.75mm
- Product Range: LUXEON M Series
- SVHC: No SVHC (07-Jul-2017)
- CCT: 4000K
- Forward Current If Max: 1.05A
- Forward Voltage @ Test: 12V
- LED Colour: White
- LED Mounting: SMD
- No. of Pins: 3Pins
- Operating Temperature Max: 120°C
- Operating Temperature Min: -40°C
- Power @ Test: 8.4W
