Omschrijving

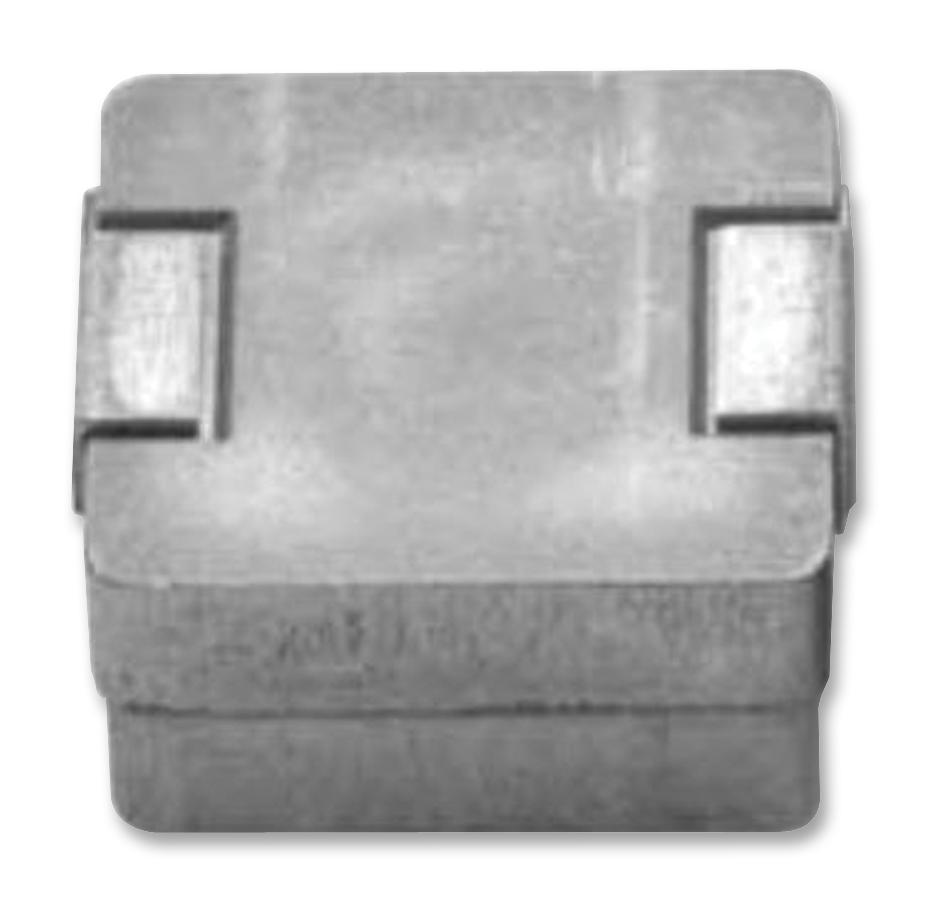

VISHAY - IHLP5050FDER6R8M01 - Power Inductor (SMD), 6.8 µH, 11.5 A, Shielded, 16.5 A, IHLP-5050FD-01
- Inductance: 6.8µH
- RMS Current (Irms): 11.5A
- Inductor Construction: Shielded
- Saturation Current (Isat): 16.5A
- Product Range: IHLP-5050FD-01 Series
- Power Inductor Case: 13.2mm x 12.9mm x 6.5mm
- DC Resistance Max: 0.014ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- External Depth: 6.5mm
- External Length / Height: 13.2mm
- External Width: 12.9mm
- Inductor Type: High Current
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
