Omschrijving

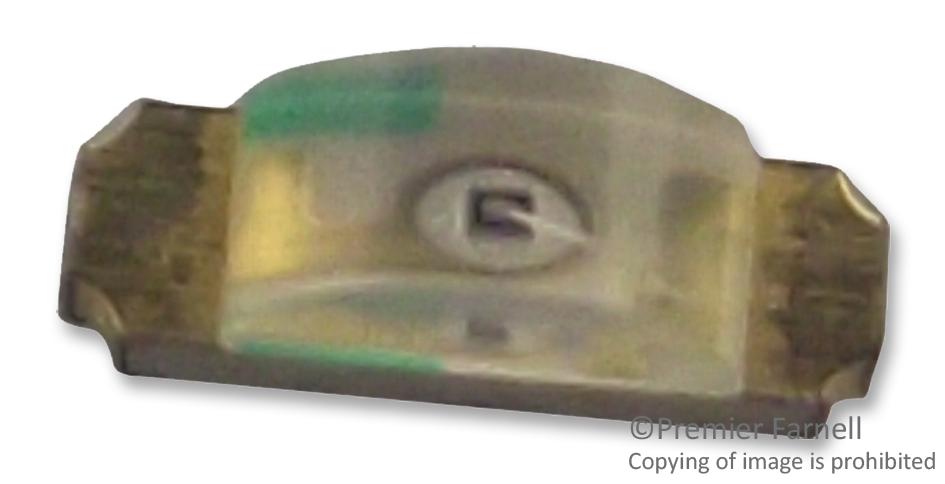

BROADCOM - HSMQ-C110. - LED, Green, SMD, 20 mA, 3.4 V, 527 nm
- LED Colour: Green
- LED Mounting: SMD
- LED Case Size: -
- Forward Current If: 20mA
- Forward Voltage: 3.4V
- Wavelength Typ: 527nm
- Luminous Intensity: 150mcd
- Viewing Angle: 130°
- Lens Shape: Dome
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 2A - 4 weeks
- SVHC: No SVHC (27-Jun-2018)
- Dominant Wavelength: 527nm
- External Depth: 1.5mm
- External Length / Height: 3.2mm
- External Width: 1mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 3.9V
- LED Type: Standard
- Light Output Orientation: Side Emitting
- Luminous Intensity @ If Min: 45mcd
- Luminous Intensity Typ: 150mcd
- Material: InGan
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Operating Temperature Range: -30°C to +85°C
- Opto Mounting Orientation: 90°
- PIV Max: 5V
- Peak Wavelength: 520nm
- Reverse Protection Voltage: 5V
- Storage Temperature Max: 85°C
- Storage Temperature Min: -40°C
- Voltage Vf Min: 3.4V
- Voltage Vf Typ: 3.4V
