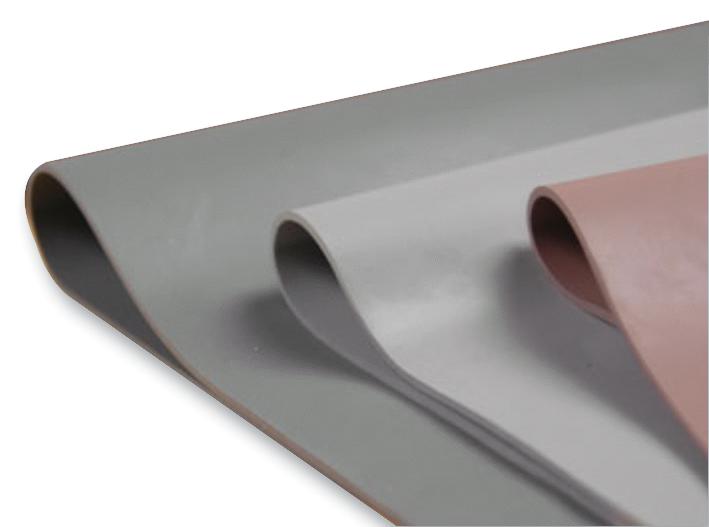

T GLOBAL - H486-150-1.5A - Thermal Insulator, Gap Filler, Sheet, Carbon, 3.2 W/m.K, 1.5 mm
- Insulator Body Material: Carbon
- Thermal Conductivity: 3.2W/m.K
- Breakdown Voltage Vbr: -
- Thickness: 1.5mm
- Volume Resistivity: -
- Thermal Impedance: -
- Dielectric Strength: -
- Product Range: H486 Series
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 1.5mm
- External Width: 150mm
- Length: 150mm
- Operating Temperature Max: 200°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +200°C
- Overall Width: 150mm
- Type: Thermal Pad
