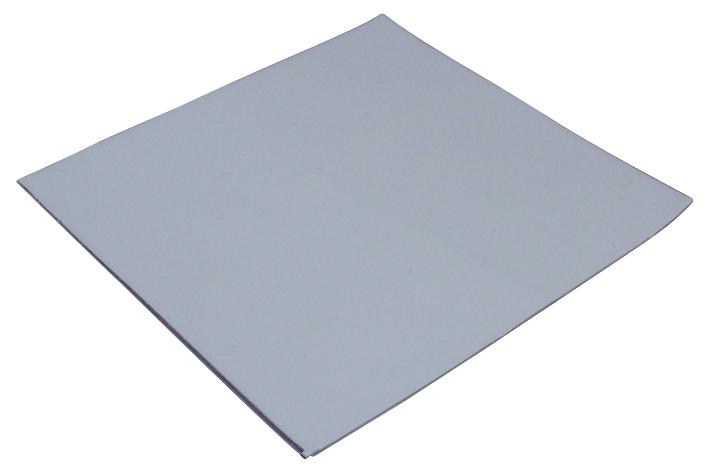

BERGQUIST - GP5000S35-0.100-02-0404 - Thermal Gap Pad, 5000S35, 0.100", 4" x 4" Sheet
- Thermal Conductivity: 5W/m.K
- Thickness: 2.54mm
- Thermal Impedance: -
- Dielectric Strength: -
- External Length: 101.6mm
- External Width: 101.6mm
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Length: 4"
- Operating Temperature Max: 200°C
- Operating Temperature Min: -60°C
- Operating Temperature Range: -60°C to +200°C
- Overall Width: 4"
- Packages Cooled: BGA, TO-220
- Volume Resistivity: 1000Mohm-m
