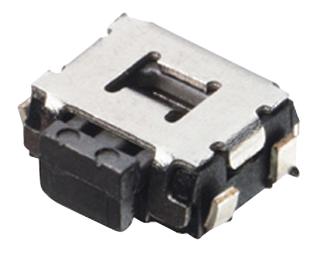

PANASONIC - EVQ9P701K - Tactile Switch, EVQ9P7, Side Actuated, Surface Mount, Rectangular Button, 160 gf, 50mA at 12VDC
- Product Range: EVQ9P7 Series
- Actuator Orientation: Side Actuated
- Switch Mounting: SMD
- Actuator Style: Rectangular Button
- Actuating Force: 160gf
- Contact Rating: 50mA at 12VDC
- Switch Dimensions (L x W): 4.7mm x 2.9mm
- IP Rating: -
- Illumination: Non Illuminated
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Side
- Contact Configuration: SPST-NO
- Contact Current Max: 50mA
- Contact Voltage DC Nom: 12V
- Operating Force: 1.6N
- Switch Terminals: Solder
