Omschrijving

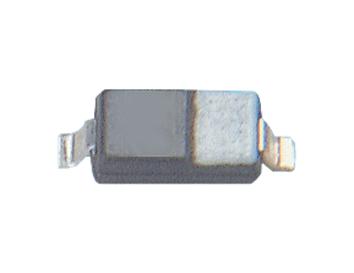

STMICROELECTRONICS - ESDLIN1524BJ - TVS Diode, Transil ESDLIN, Bidirectional, 24 V, 50 V, SOD-323, 2 Pins
- Product Range: Transil ESDLIN Series
- TVS Polarity: Bidirectional
- Reverse Stand-Off Voltage Vrwm: 24V
- Clamping Voltage Vc Max: 50V
- Diode Case Style: SOD-323
- No. of Pins: 2Pins
- Breakdown Voltage Min: 25.4V
- Breakdown Voltage Max: 30.3V
- Peak Pulse Power Dissipation: 160W
- Automotive Qualification Standard: AEC-Q101
- SVHC: No SVHC (17-Dec-2015)
- Breakdown Voltage: 27.8V
- Breakdown Voltage Range: 25.4V to 30.3V
- Capacitance Cd @ Vr Typ: 16pF
- Diode Type: Bidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +150°C
- Peak Pulse Current Ippm: 3A
- Stand-off Voltage: 24V
- Termination Type: Surface Mount Device
- Time Measured: 50ms
