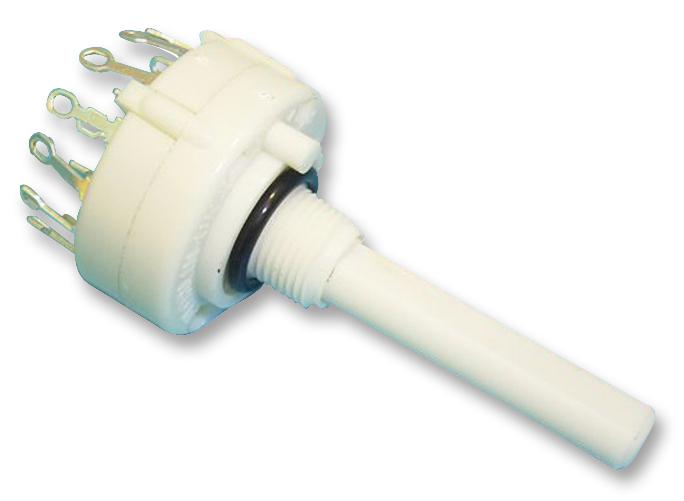

LORLIN - CKS1049 - Rotary Switch, 12 Position, 1 Pole, 30 °, 150 mA, 250 V, CKS
- No. of Switch Positions: 12 Position
- No. of Poles: 1 Pole
- Angle of Throw: 30°
- Contact Current AC Max: 150mA
- Contact Voltage AC Max: 250V
- Product Range: CKS Series
- Illumination: Non Illuminated
- Contact Current DC Max: 1A
- Contact Voltage DC Max: 250V
- SVHC: No SVHC (15-Jan-2018)
- Angle: 30°
- Contact Resistance: 20mohm
- Indexing Angle: 30°
- No. of Mechanical Operations: 10000
- No. of Positions: 12Ways
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Proof Voltage: 1500V
- Spindle Diameter: 6mm
