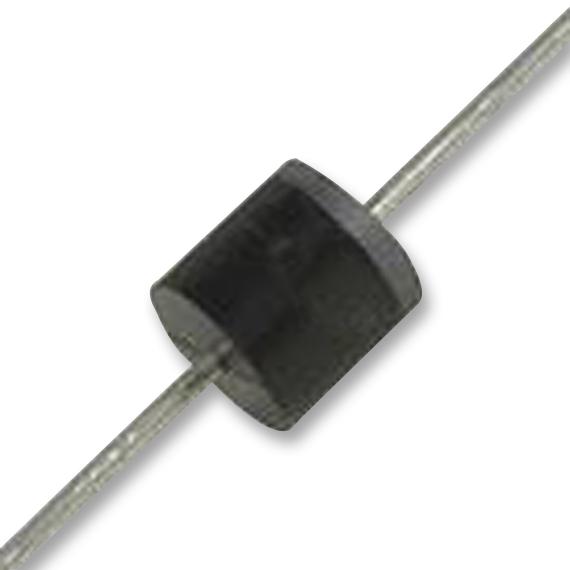

STMICROELECTRONICS - BZW50-120B - TVS Diode, BZW50, Bidirectional, 120 V, 215 V, Axial Leaded, 2 Pins
- Product Range: BZW50 Series
- TVS Polarity: Bidirectional
- Reverse Stand-Off Voltage Vrwm: 120V
- Clamping Voltage Vc Max: 215V
- Diode Case Style: Axial Leaded
- No. of Pins: 2Pins
- Breakdown Voltage Min: 133V
- Breakdown Voltage Max: 133V
- Peak Pulse Power Dissipation: 5kW
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Breakdown Voltage: 133V
- Breakover Voltage Min: 133V
- Capacitance Cd @ Vr Typ: 950pF
- Clamping Voltage @ 8/20µs Max: 274V
- Diode Type: Bidirectional TVS
- Operating Temperature Max: 175°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
- Peak Pulse Current Ippm: 500A
- Power Dissipation Pd: 6.5W
- Reverse Voltage Vr Max: 120V
- Stand-off Voltage: 120V
- Termination Type: Axial Leaded
- Time Measured: 50ms
