Omschrijving

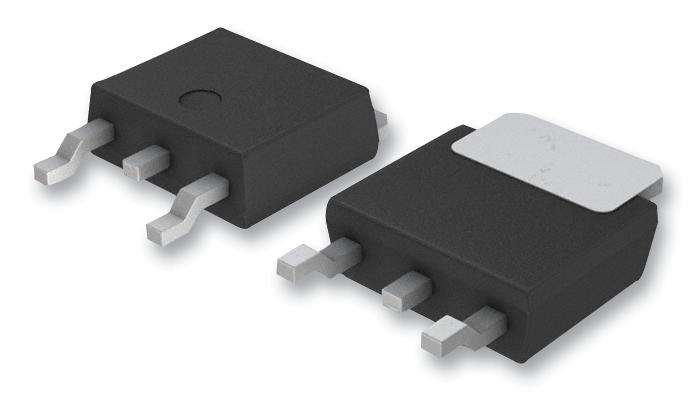

WEEN SEMICONDUCTORS - BTA208S-800E,118 - Triac, 800 V, 8 A, TO-252 (DPAK), 1 V, 72 A, 25 mA
- Peak Repetitive Off-State Voltage, Vdrm: 800V
- On State RMS Current IT(rms): 8A
- Triac Case Style: TO-252
- Gate Trigger Current Max (QI), Igt: 10mA
- Gate Trigger Voltage Max Vgt: 1V
- Peak Gate Power: 5W
- Peak Non Rep Surge Current Itsm 50Hz: 72A
- Holding Current Max Ih: 25mA
- No. of Pins: 3Pins
- Operating Temperature Max: 125°C
- Product Range: BTA208 Series
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
