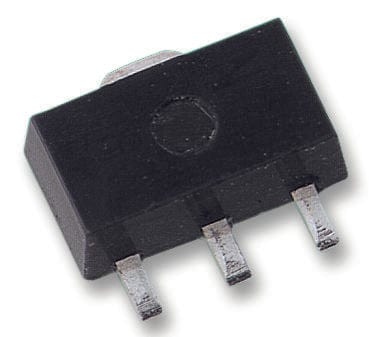

NEXPERIA - BCX54-16,115 - Bipolar (BJT) Single Transistor, NPN, 45 V, 1 A, 500 mW, SOT-89, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 45V
- Transition Frequency ft: 180MHz
- Power Dissipation Pd: 500mW
- DC Collector Current: 1A
- DC Current Gain hFE: 100hFE
- Transistor Case Style: SOT-89
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: BCX54 Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Continuous Collector Current Ic Max: 1A
- Current Ic Continuous a Max: 1A
- Current Ic hFE: 150mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 50MHz
- Hfe Min: 100
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 1.35W
- Voltage Vcbo: 45V
