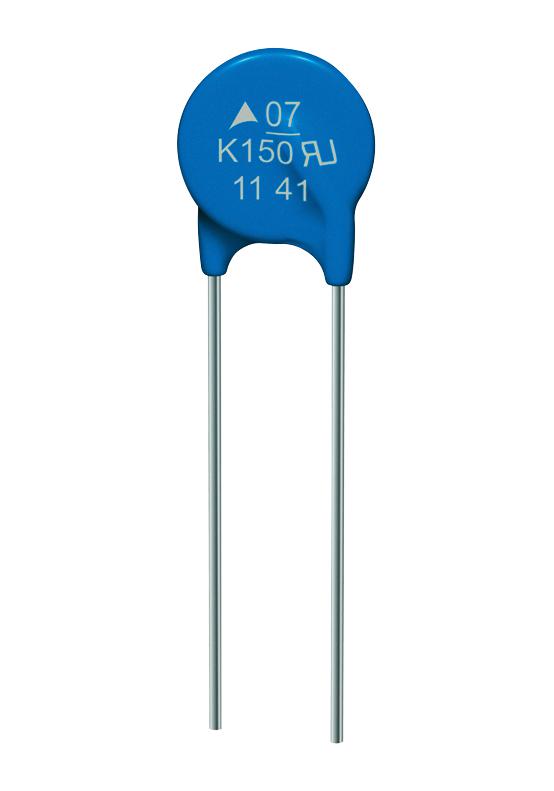

EPCOS - B72207S2251K101 - TVS Varistor, 250 V, 320 V, B722 AdvanceD, 650 V, Disc 7mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 250V
- Voltage Rating V DC: 320V
- Product Range: B722 AdvanceD Series
- Clamping Voltage Vc Max: 650V
- Varistor Case Style: Disc 7mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 1.75kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 25J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
