Omschrijving

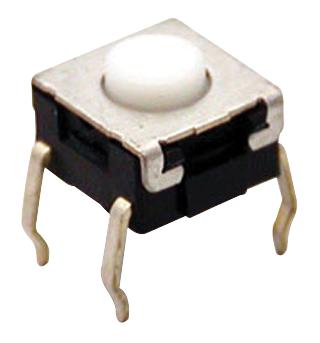

OMRON - B3W1052 - Tactile Switch, B3W, Top Actuated, Through Hole, Plunger for Cap, 230 gf, 50mA at 24VDC
- Product Range: B3W Series
- Actuator Orientation: Top Actuated
- Switch Mounting: Through Hole
- Actuator Style: Plunger for Cap
- Actuating Force: 230gf
- Contact Rating: 50mA at 24VDC
- Switch Dimensions (L x W): 6.6mm x 6mm
- IP Rating: IP67
- Illumination: Non Illuminated
- Actuation Type: Raised
- Contact Configuration: SPST-NO
- Contact Current Max: 50mA
- Contact Voltage DC Nom: 24V
- Height: 7.3mm
- Operating Force: 2.25N
- Switch Terminals: Solder
