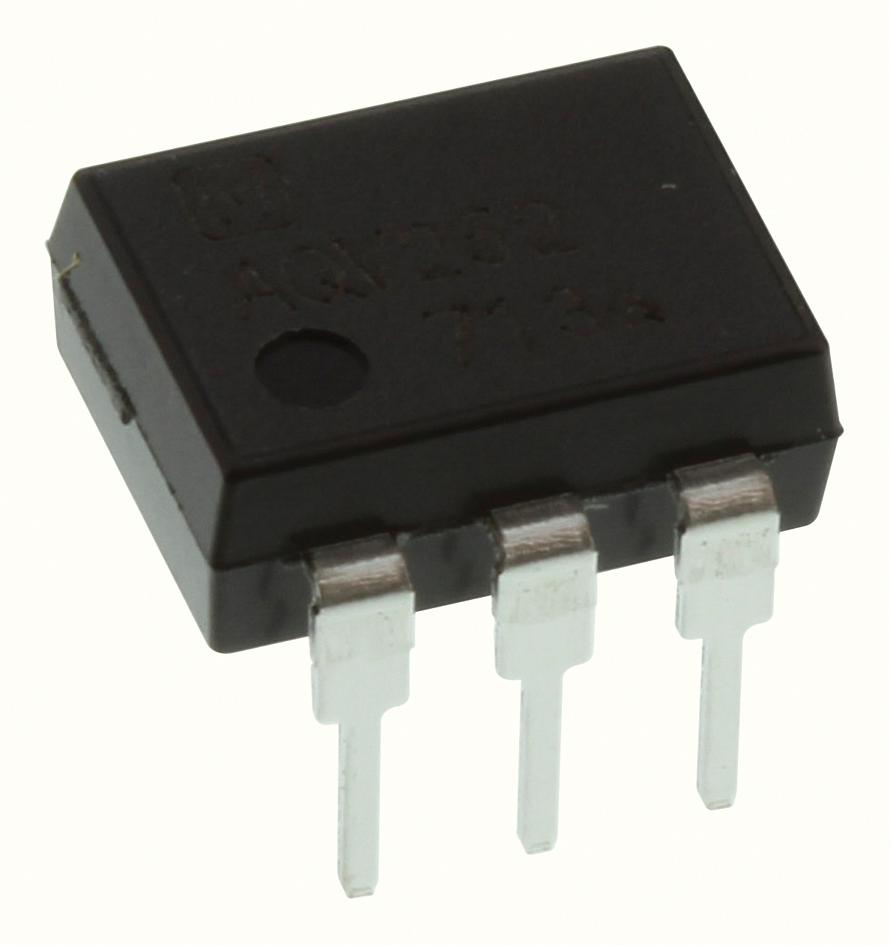

PANASONIC - AQV252 - MOSFET Relay, 60 V, 400 mA, 1.4 ohm, SPST-NO
- Contact Configuration: SPST-NO
- Load Current: 400mA
- Relay Terminals: Through Hole
- Load Voltage Max: 60V
- On State Resistance Max: 1.4ohm
- Isolation Voltage: 1.5kV
- Forward Current If: 900µA
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Approval Category: UL Recognised
- Control Current Max: 3mA
- Control Current Typ: 0.9mA
- Control Current Voltage: 1.25V
- Control Voltage DC Max: 1.5V
- External Depth: 6.4mm
- External Length / Height: 3.9mm
- External Width: 8.8mm
- I/O Capacitance: 3pF
- Insulation Resistance: 1000Mohm
- Leakage Current: 1µA
- Load Current RMS Max: 400mA
- Load Voltage DC Max: 60V
- Load Voltage Range: 60V
- No. of Pins: 6Pins
- RMS Load Voltage Max: 60V
- Termination Method: Through Hole
- Turn Off Time: 0.07ms
- Turn On Time: 1.4ms
