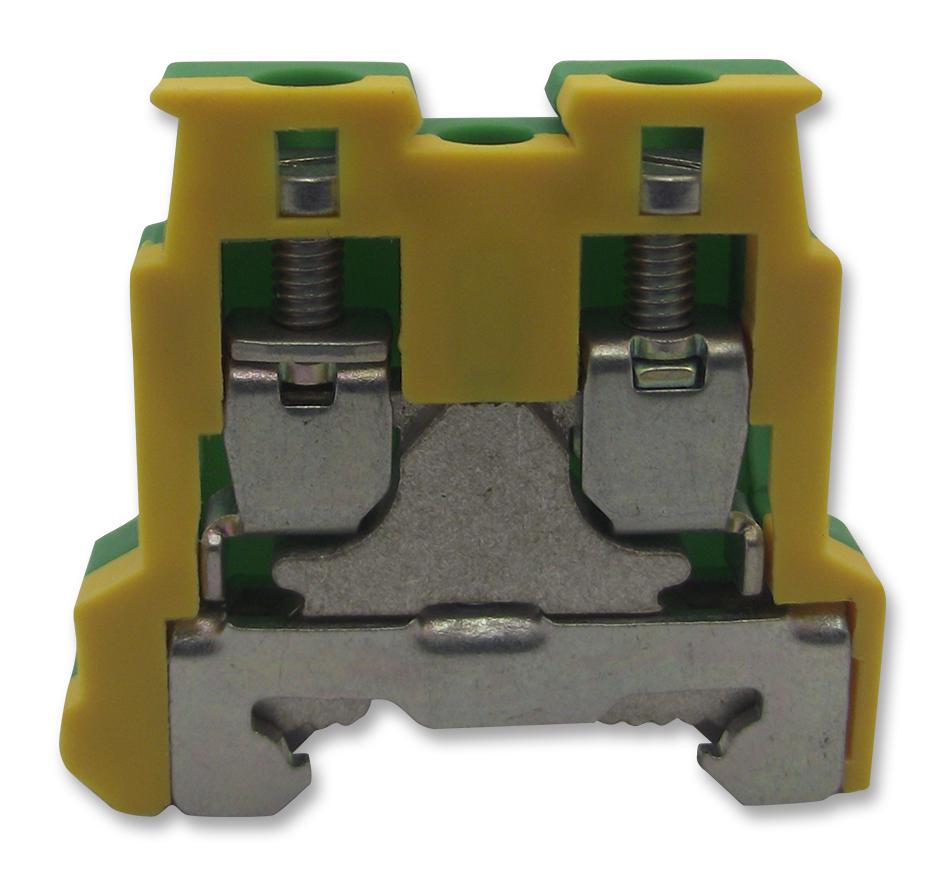

WEIDMULLER - AKE 2.5 - DIN Rail Mount Terminal Block, 2 Ways, 22 AWG, 12 AWG, 2.5 mm², Screw
- No. of Positions: 2Ways
- Wire Size AWG Min: 22AWG
- Wire Size AWG Max: 12AWG
- Conductor Area CSA: 4mm²
- Wire Connection Method: Screw
- Rated Current: -
- Rated Voltage: -
- No. of Levels: 1
- Product Range: Weidmuller AKZ Series
- SVHC: No SVHC (15-Jan-2018)
- Colour: Green / Yellow
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- External Depth: 28mm
- External Length / Height: 27mm
- External Width: 7mm
- Height: 27mm
- Outer Insulation Strip Length: 7mm
- Pitch Spacing: 5mm
- Voltage Rating VAC: 250V
- Wire Area Size Max: 4mm²
- Wire Area Size Min: 0.13mm²
