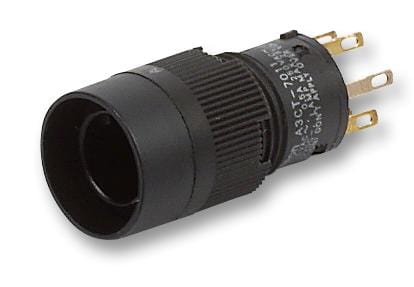

OMRON - A3CT-7021 - Pushbutton Switch, A3C, 12 mm, SPST-NO, SPST-NC, On-Off, Round
- Product Range: A3C Series
- Contact Configuration: SPST-NO, SPST-NC
- Switch Operation: On-Off
- Contact Current Max: 1A
- Contact Voltage AC Nom: 250V
- Illumination Colour: -
- Contact Voltage DC Nom: 30V
- Switch Terminals: Solder Lug
- SVHC: No SVHC (27-Jun-2018)
- Actuation Type: Round
- Approval Bodies: CSA, UL
- Behind Panel Depth: 26.5mm
- Bezel Diameter: 14mm
- Contact Current DC Max: 100mA
- Contact Current Rating: 1A
- Contact Voltage VDC: 30V
- External Length / Height: 29.5mm
- IP / NEMA Rating: IP40
- IP Rating: IP40
- Operating Temperature Max: 55°C
- Operating Temperature Min: -10°C
- Panel Cutout Diameter: 12mm
- Pushbutton Actuator Style: Round
- Pushbutton Switch Type: Standard
- Switch Mounting: Panel
