Omschrijving

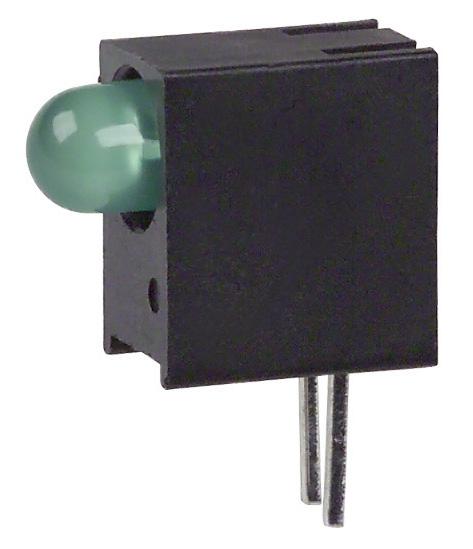

DIALIGHT - 551-0607F - Circuit Board Indicator, Green, 1 LEDs, Through Hole, T-1 (3mm), 10 mA, 19 mcd
- LED Colour: Green
- No. of LEDs: 1LEDs
- LED Mounting: Through Hole
- Bulb Size: T-1 (3mm)
- Forward Current If: 10mA
- Luminous Intensity: 19mcd
- Forward Voltage: 5V
- Viewing Angle: 60°
- Height: 7.11mm
- Width: 4.32mm
- Product Range: -
- SVHC: No SVHC (15-Jun-2015)
- Forward Current If Max: 10mA
- Forward Voltage VF Max: 5V
- LED / Lamp Size: 3mm / T-1
- LED Type: Standard
- Lens Shape: Round
- Luminous Intensity Typ: 19mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Peak Wavelength: 565nm
