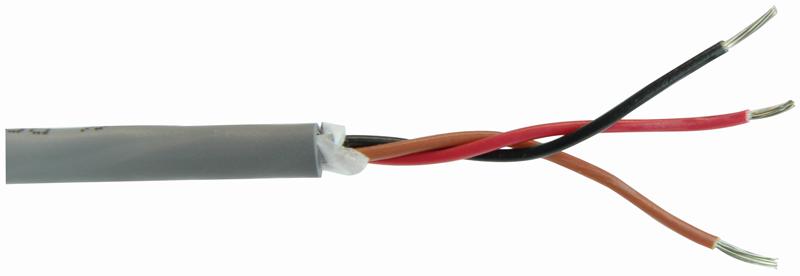

ALPHA WIRE - 5003C SL005 - Multicore Cable, Xtra Guard® 1, Unscreened, 3 Core, 22 AWG, 0.35 mm², 100 ft, 30.5 m
- Cable Shielding: Unscreened
- No. of Cores: 3Core
- Wire Gauge: 22AWG
- Conductor Area CSA: 0.35mm²
- Reel Length (Imperial): 100ft
- Reel Length (Metric): 30.5m
- Jacket Colour: Grey
- No. of Max Strands x Strand Size: 7 x 30AWG
- Conductor Material: Tinned Copper
- Jacket Material: PVC
- External Diameter: 4.8mm
- Voltage Rating: 300V
- Product Range: Xtra Guard®
- SVHC: No SVHC (15-Jan-2019)
- Alpha Type Number: 5003C
- Approval Bodies: UL
- Cable Type: Unshielded
- Cable UL Style Number: UL2464
- Conductor Make-up: 7 / 30AWG
- Operating Temperature Max: 75°C
- Operating Temperature Min: -20°C
- Outer Diameter: 4.8mm
- Primary Insulation Thickness: 0.81mm
- Secondary Insulation Colour: Grey
- Secondary Insulation Material: PVC
- Shield Type: Unshielded
- Standard: CSA/flame test-4, UL/UL94V-1
- Voltage Rating VAC: 300V
- Wire Size: 22AWG
