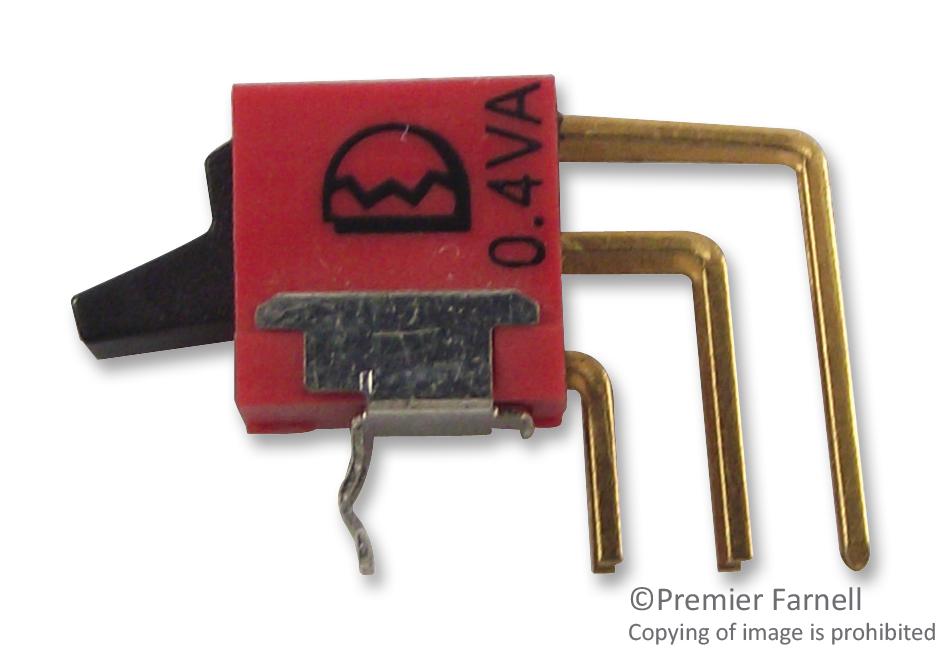

MULTICOMP PRO - 4UD1R202M7RN - Rocker Switch, On-On, DPDT, Non Illuminated, Through Hole, Black, 4U
- Illumination: Non Illuminated
- Contact Configuration: DPDT
- Switch Operation: On-On
- Actuator / Cap Colour: Black
- Switch Mounting: Through Hole
- Contact Current Max: -
- Contact Voltage AC Nom: 20V
- Contact Voltage DC Nom: 20V
- Product Range: 4UD1 Series
- SVHC: No SVHC (15-Jan-2018)
- AC Power: 0.4VA
- Approval Category: UL Recognised
- Colour: Black
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 20VAC
- Contact Voltage DC Max: 20VDC
- DC Power: 0.4VA
- External Depth: 7.68mm
- External Length / Height: 7.65mm
- External Width: 4.5mm
- Flammability Rating: UL 94V-0
- IP / NEMA Rating: IP67
- Insulation Resistance: 500Mohm
- Insulation Resistance Voltage: 500VDC
- Lever Length: 3.8mm
- Material: Glass Filled Nylon
- No. of Mechanical Operations: 50000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Termination Method: Through Hole
