355070400 Connector, Rcpt, 4Pos, 1ROW, 2mm Molex

MOLEXSKU:355070400 Bestelcode:7571577

Prijs:
Actie prijs€0,36

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (15944 units)

Omschrijving

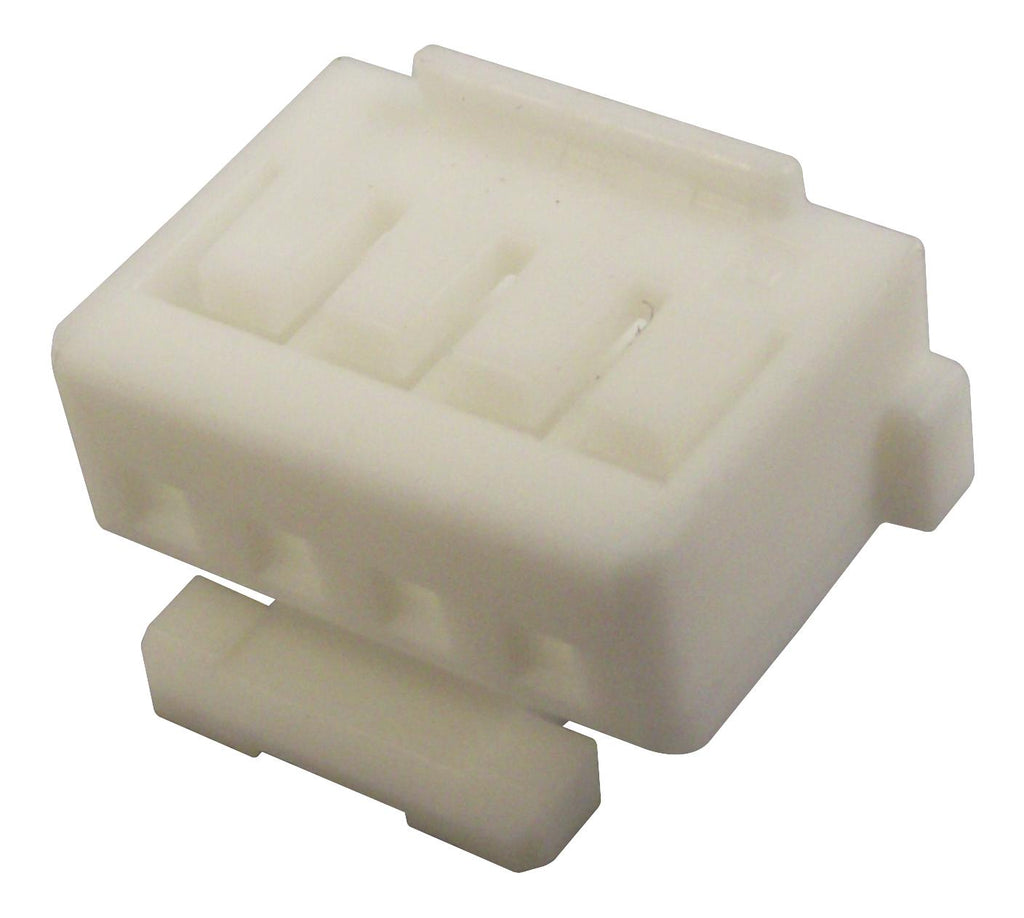

MOLEX - 355070400 - Connector Housing, Sherlock 35507, Receptacle, 4 Ways, 2 mm, 50212 Crimp Terminal

  • Pitch Spacing: 2mm
  • No. of Contacts: 4Contacts
  • Gender: Receptacle
  • Product Range: Sherlock 35507 Series
  • Contact Termination Type: Crimp
  • No. of Rows: 1Rows
  • Contact Plating: -
  • Contact Material: -
  • SVHC: No SVHC (15-Jan-2019)
  • Connector Mounting: PCB Mount
  • Connector Type: Rectangular Power
  • Contact Resistance Max: 20mohm
  • Current Max: 2A
  • External Depth: 7mm
  • External Length / Height: 2.15mm
  • External Width: 11.1mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Voltage Rating V DC: 125V
  • Voltage Rating VAC: 125V
  • Withstand Voltage: 500VAC
