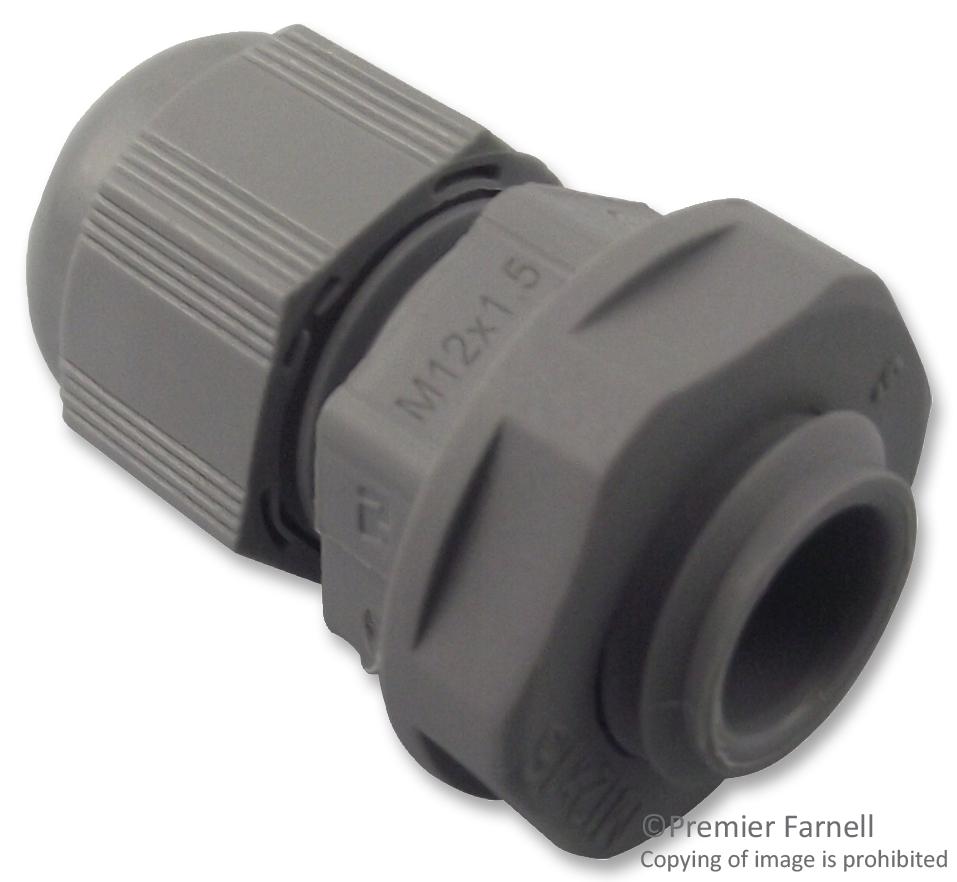

AMP - TE CONNECTIVITY - 1478768-1 - Cable Gland, Metric, With Locknut, IP68, M12, 3 mm, 6.5 mm, Nylon 6 (Polyamide 6), Grey
- Thread Size - Imperial: -
- Thread Size - Metric: M12
- Cable Diameter Min: 3mm
- Cable Diameter Max: 6.5mm
- Cable Gland Material: Nylon 6 (Polyamide 6)
- Gland Colour: Grey
- IP / NEMA Rating: IP68
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Cable Diameter Max - Imperial: 0.256"
- Cable Diameter Max - Metric: 6.5mm
- Cable Diameter Min - Imperial: 0.118"
- Cable Diameter Min - Metric: 3mm
- External Length / Height: 5mm
- For Use With: Electrical Junction Box, Automotive, Robotic
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Thread Length: 8mm
