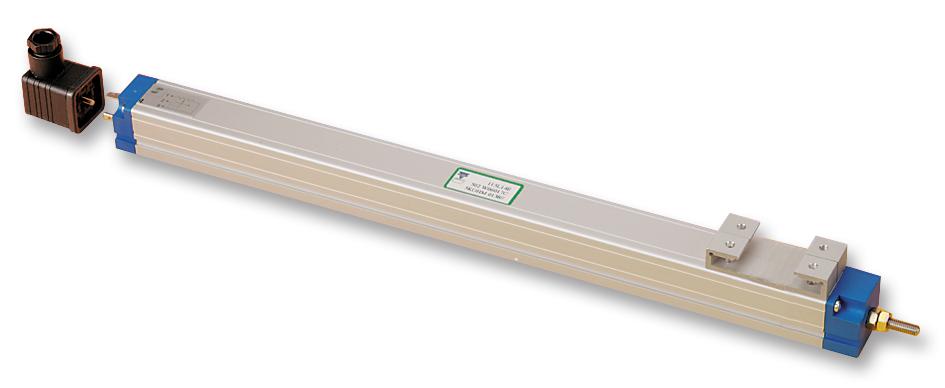

VISHAY - 115L 14E 502 W06017 - Linear Position Transducer, 115L Series, 5 kohm, Panel Mount, 0.05%, 350 mm Travel
- Supply Voltage DC Min: -
- Supply Voltage DC Max: -
- Sensor Housing: -
- No. of Pins: -
- Output Current: -
- Operating Magnetic Force Min: -
- Product Range: -
- Dielectric Withstand Voltage: 1kV
- External Length / Height: 425mm
- External Width: 31.7mm
- Impedance: 5kohm
- Insulation Resistance: 1Gohm
- Insulation Testing Voltage: 500V
- Length: 425mm
- Linear Range: 25mm to 350mm
- Operating Force: 7.5N
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Power Rating: 50mW
- Transducer Function: Linear Motion
- Transducer Output Type: Linear Motion
