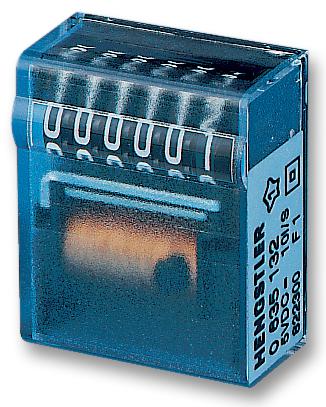

HENGSTLER - 0.635.132 - Totalizer, mini-i Type 635, 6 Digits, 5 Vdc, High Shock Stability
- No. of Digits / Alpha: 6
- Digit Height: 4mm
- Supply Voltage Min: 5V
- Supply Voltage Max: 12V
- Panel Cutout Height: 14.4mm
- Panel Cutout Width: 27mm
- Operating Temperature Min: -10°C
- Operating Temperature Max: 50°C
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Count Speed Max: 10Hz
- Counting Speed: 10Hz
- External Depth: 31mm
- External Length / Height: 14mm
- External Width: 25.2mm
- Operating Temperature Range: -10°C to +50°C
- Power Consumption: 80mW
- Supply Voltage DC Max: 12VDC
- Supply Voltage Range: 5V to 12V
- Supply Voltage V DC: 5VDC
