Omschrijving

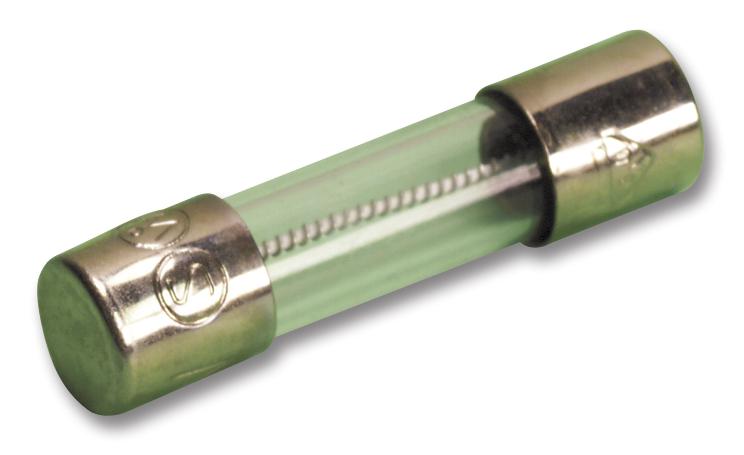

LITTELFUSE - 0218.100MXP - Fuse, Cartridge, Slow Blow, 100 mA, 250 V, 5mm x 20mm, 0.2" x 0.79", 218
- Blow Characteristic: Slow Blow
- Fuse Current: 100mA
- Voltage Rating VAC: 250V
- Fuse Size Metric: 5mm x 20mm
- Fuse Size Imperial: 0.2" x 0.79"
- Product Range: 218 Series
- Breaking Capacity Current AC: 35A
- Approval Bodies: CE, CSA, SEMKO, UL, VDE
- Breaking Capacity: 35A @ 250V AC
- Cartridge Fuse Material: Glass
- Case Material: Glass
- Fuse Type Blowing Characteristic: Antisurge
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Standard: IEC 60127-2, Sheet 3
