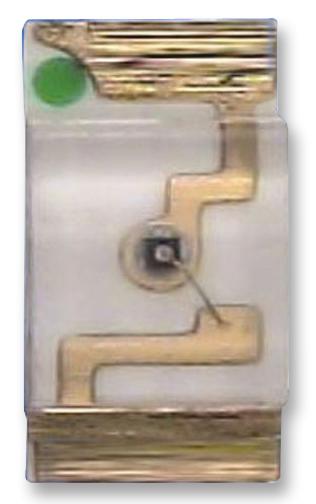

MULTICOMP PRO - OVS-0803 - LED, Blue, SMD, 0805 [2012 Metric], 30 mA, 3.2 V, 465 nm
- LED Colour: Blue
- LED Mounting: SMD
- LED Case Size: 0805
- Forward Current If: 30mA
- Forward Voltage: 3.2V
- Wavelength Typ: 465nm
- Luminous Intensity: 100mcd
- Viewing Angle: 130°
- Lens Shape: Rectangular
- Product Range: SMD Blue LED
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: 1.25mm x 1.4mm
- Dominant Wavelength: 465nm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 4V
- LED / Lamp Size: 0805
- LED Type: Standard
- Luminous Intensity Min: 51.6mcd
- Luminous Intensity Typ: 100mcd
- Material: InGaN / Sapphire
- No. of Pins: 2Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Operating Temperature Range: -30°C to +80°C
- Voltage Vf Typ: 3.2V
