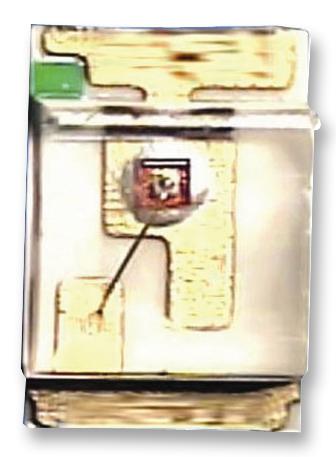

MULTICOMP PRO - 703-0069 - LED, Red, SMD, 0603, 20 mA, 2.1 V, 625 nm
- LED Colour: Red
- LED Mounting: SMD
- LED Case Size: 0603
- Forward Current If: 20mA
- Forward Voltage: 2.1V
- Wavelength Typ: 625nm
- Luminous Intensity: 300mcd
- Viewing Angle: 130°
- Lens Shape: Rectangular
- Product Range: OVS-06 Series
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: 0.8mm x 1mm
- Dominant Wavelength: 625nm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.6V
- LED / Lamp Size: 0603
- LED Type: Standard
- Luminous Intensity Min: 165mcd
- Luminous Intensity Typ: 300mcd
- Material: A1GalnP/Si
- No. of Pins: 2Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Operating Temperature Range: -30°C to +80°C
- Voltage Vf Typ: 2.1V
