Description

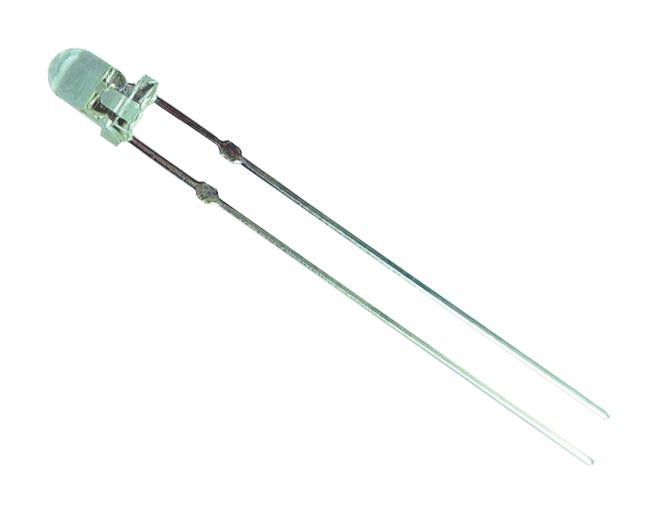

MULTICOMP PRO - OVL-3323 - LED, Blue, Through Hole, T-1 (3mm), 30 mA, 3.2 V, 465 nm
- LED Colour: Blue
- LED Mounting: Through Hole
- LED Case Size: T-1 (3mm)
- Forward Current If: 30mA
- Forward Voltage: 3.2V
- Wavelength Typ: 465nm
- Luminous Intensity: 1.7cd
- Viewing Angle: 30°
- Lens Shape: Dome
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: T-1 (3mm)
- Dominant Wavelength: 465nm
- Forward Current @ Test: 20mA
- Forward Current If Max: 30mA
- Forward Voltage @ Test: 3.2V
- Forward Voltage VF Max: 4V
- LED / Lamp Size: 3mm / T-1
- Luminous Intensity @ Test: 1.7cd
- Luminous Intensity Min: 700mcd
- Luminous Intensity Typ: 1700mcd
- Material: InGaN / Sapphire
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +85°C
- Power @ Test: 0.1W
- Voltage Vf Typ: 3.2V
