Description

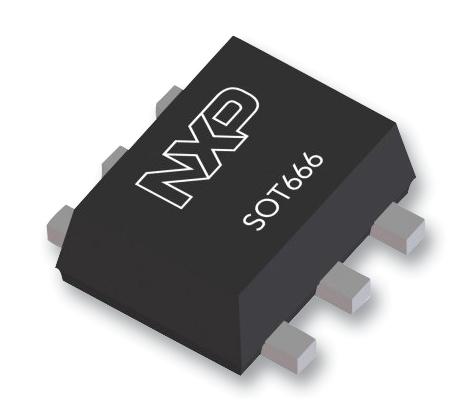

NEXPERIA - NX3008CBKV,115 - Dual MOSFET, Complementary N and P Channel, 30 V, 400 mA, 1 ohm, SOT-666, Surface Mount
- Transistor Polarity: N and P Channel
- Continuous Drain Current Id: 400mA
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 1ohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs: 900mV
- Power Dissipation Pd: 330mW
- Transistor Case Style: SOT-666
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: -0.8A
- Voltage Vgs th Max: 8V
