MSS7341-223MLD Inductor, 22UH, 2.35A, 20%, Pwr, 22MHZ COILCRAFT

COILCRAFTSKU: MSS7341-223MLD Order code: 2288672

Price:
Sale price€4,68

Tax included Shipping calculated at checkout

Stock:
In stock (945 units), ready to be shipped

Documents et téléchargements

Description

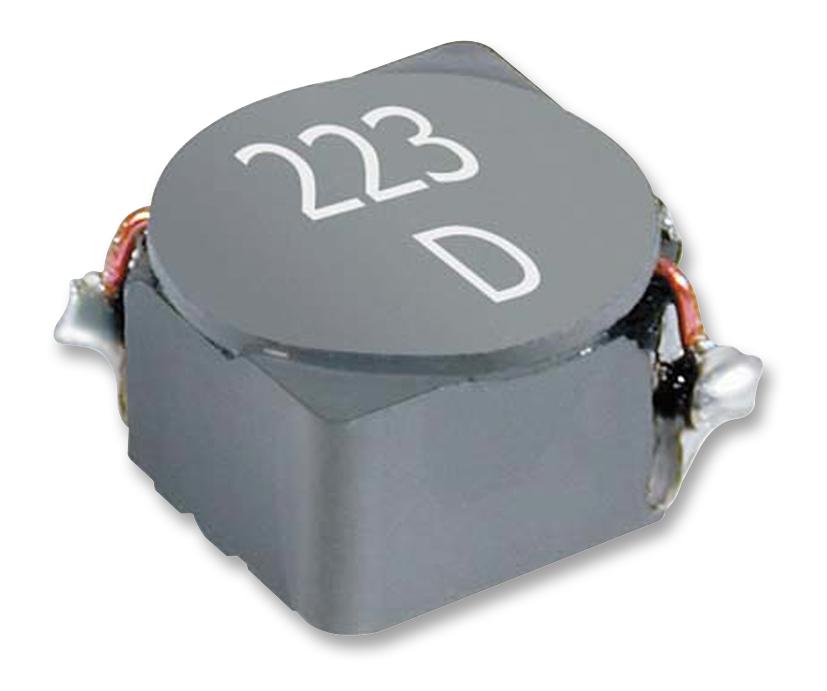

COILCRAFT - MSS7341-223MLD - Power Inductor (SMD), 22 µH, 2.35 A, Shielded, 1.02 A, MSS7341

  • Inductance: 22µH
  • RMS Current (Irms): 2.35A
  • Inductor Construction: Shielded
  • Saturation Current (Isat): 1.02A
  • Product Range: MSS7341 Series
  • Power Inductor Case: 7.3mm x 7.3mm x 4.1mm
  • DC Resistance Max: 0.082ohm
  • Inductance Tolerance: ± 20%
  • SVHC: No SVHC (15-Jan-2019)
  • Automotive Qualification Standard: AEC-Q200
  • Self Resonant Frequency Min: 22MHz
