Description

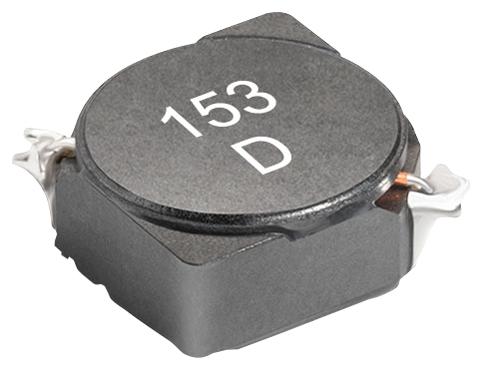

COILCRAFT - MSS7331-823MLC - Power Inductor (SMD), 82 µH, 1.2 A, Shielded, 520 mA, MSS7331
- Inductance: 82µH
- RMS Current (Irms): 1.2A
- Inductor Construction: Shielded
- Saturation Current (Isat): 520mA
- Product Range: MSS7331 Series
- Power Inductor Case: 6.6mm x 6.6mm x 3.1mm
- DC Resistance Max: 0.37ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
